Route Details

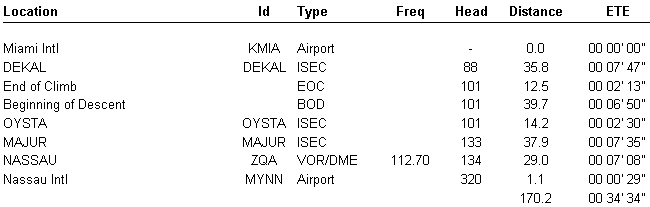

FL.NO: CDA613 (Leg 1)

From : KMIA Miami INTL
To   : MYNN Nassau INTL
Alt  : MYEM Governors Harbour
(HDG 081°M 63NM FROM MYNN)

ETD  17:30Z    ALT  :FL180
ETA  18:00Z    SPEED:290kts
ETE  00:30     A/C  :BAC1-11
FUEL 3500 KG   SET  :6808 KG

Use above fuel for both legs

Flightplan

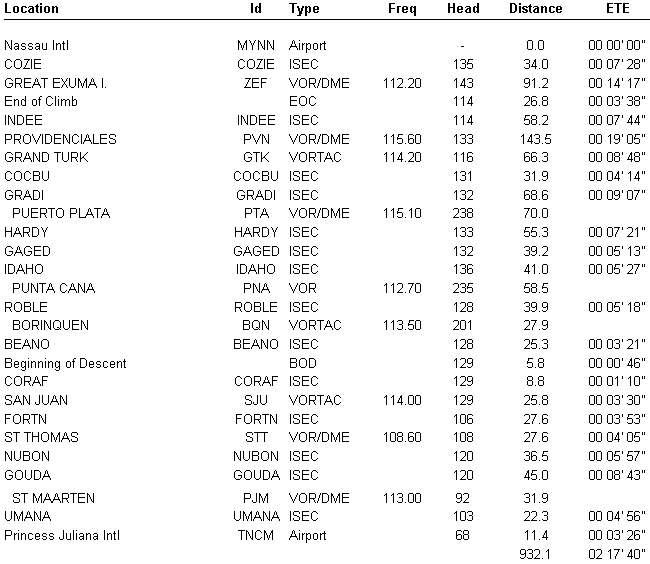

FL.NO: CDA613 (Leg 2)

From : MYNN Nassau INTL
To   : TNCM Philipsburg
Alt  : TKPK Bradshaw INTL
(HDG 165°M 50NM FROM TNCM)

ETD  18:25Z    ALT  :FL350
ETA  20:40Z    SPEED:M.77
ETE  02:15     A/C  :BAC1-11

Flightplan

Procedures

ISEC Nav Points
See Charts Department for SIDs, STARs, IAP, ENROUTE



DEKAL	N25.51.05 W079.37.87
OYSTA	N25.43.71 W078.24.54
MAJUR	N25.19.96 W077.51.88

COZIE	N24.40.88 W076.58.91
INDEE	N23.08.39 W074.23.37
COCBU	N21.08.99 W070.39.26
GRADI	N20.31.27 W069.37.92
HARDY	N20.00.38 W068.49.02
GAGED	N19.39.86 W068.13.48
IDAHO	N19.15.63 W067.38.37
ROBLE	N18.57.27 W067.00.84
BEANO	N18.45.59 W066.37.17
CORAF	N18.38.80 W066.23.48
FORTN	N18.24.45 W065.30.37
NUBON	N18.09.87 W064.25.00
GOUDA	N17.56.04 W063.40.00
UMANA	N17.55.94 W063.16.59

Airfield Data


Miami INTL ELEV 9ft

09L ILS/GS/DME 110.30 IMFA 090°
27R ILS/GS 190.10 IVIN 270°
(Both 10502ft)

09R ILS/GS 110.90 IBUL 090°
27L ILS/GS 109.50 IMIA 270°
(Both 13000ft)

12 ILS/GS/DME 108.90 IGEM 122°
30 ILS/GS/DME 111.70 IDCX 302°
(Both 9355ft)


Nassau INTL elev 9ft

14/32 11000FT
VOR ZQA 112.70
NDB ZQA 251.00






Governors Harbour ELEV 22ft

15/33 8450ft
VOR ZGV 112.50
NDB ELJ 224.00



Philipsburg ELEV 9ft

09/27 7053ft
VOR PJM 113.00



Bradshaw INTL ELEV 167ft

07/25 8002ft
VOR SKB 112.00
NDB SKB 325.00
