Route Details

Route By G.Summons (100)
Flightplan By Dave (109)



FL.NO: UKD502

From : EGFF CARDIFF
To   : EGMC SOUTHEND
Alt  : EGMH KENT INTL
(HDG 124°M 28NM FROM EGMC)

ETD  07:30Z    ALT  :FL150
ETA  08:20Z    SPEED:240kts
ETE  00:50     A/C  :SF340
FUEL 512 KG    SET  :1500 KG

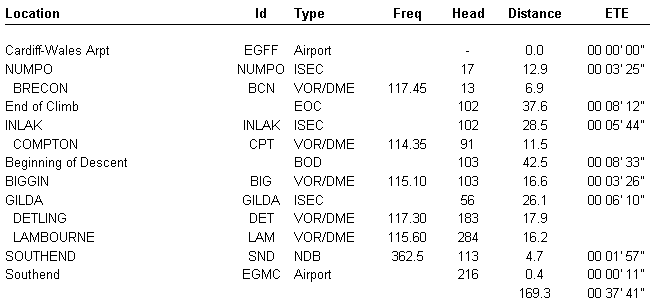

Flightplan

Procedures

ISEC Nav Points
See Charts Department for SIDs, STARs, IAP, ENROUTE



NUMPO	N51.36.60 W003.17.02
INLAK	N21.28.68 W001.31.45
GILDA	N51.36.10 E000.35.02

Airfield Data


CARDIFF ELEV 219ft

12 ILS/GS/DME ICDF 108.30 127°
30 ILS/GS/DME ICWA 108.30 307°
(BOTH 7726ft)

VORTAC CWL 110.70
NDB CWL 388.50



SOUTHEND ELEV 88ft

06 NO ILS
24 ILS/GS/DME IND 111.35 243°
(BOTH 5266ft)

NDB SND 362.50



KENT INTL ELEV 177ft

10 NO ILS
28 ILS/GS/DME IMSN 111.75 285°
(BOTH 8993ft)
